Foil sleeve

for entries through the floor slab

HFM

Add to wish listAdd to wish list

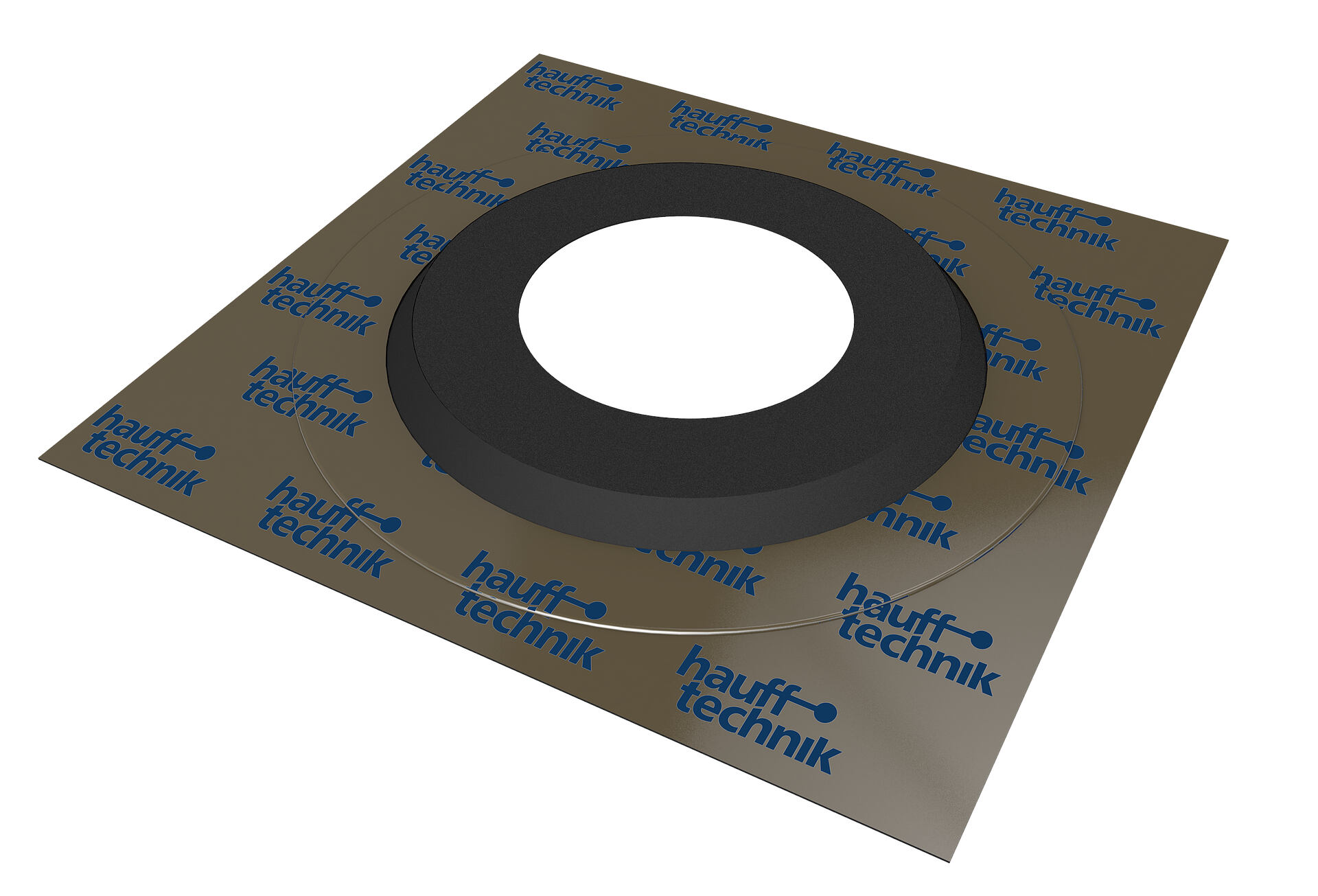

Foil sleeve - for entries through the floor slab
USP
  • easy integration of the vapour barrier or radon foil
  • prevents convection and the resulting ingress of radon gas into the building
Hauff foil sleeve for secure connection of entries through the slab to a vapour barrier, radon foil or other sheet-type seal on the slab.
Foil sleeve - for entries through the floor slab

Facts

Advantages:

  • can be installed easily and quickly on-site
  • excellent adhesive strength

Application range:

  • Water exposure class DIN 18533: W1-E
  • Waterproof concrete stress class 1 and 2

Material:

  • Foil flange: Aluminium-plastic composite foil with butyl rubber
  • Rubber insert: EPDM

Tightness:

  • gastight
  • radon tight
Downloads

Installation instructions

Data sheet & tender specification

For download of data sheet and tender specification please configurate the product in the section below and download via the symbol Download symbol

Variants

Number of cables/medium Size (mm) Article code Article number GTIN
1 150 x 150 mm HFM 1x4-8 3030370203 4052487227971
Download of data sheet and tender specification
title=
1 150 x 150 mm HFM 1x8-12 3030370204 4052487227988
Download of data sheet and tender specification
title=
1 150 x 150 mm HFM 1x15-22 3030370206 4052487227995
Download of data sheet and tender specification
title=
1 150 x 150 mm HFM 1x25-32 3030370207 4052487228008
Download of data sheet and tender specification
title=
1 230 x 230 mm HFM 1x32-40 3030370208 4052487228015
Download of data sheet and tender specification
title=
1 230 x 230 mm HFM 1x40-55 3030370209 4052487228022
Download of data sheet and tender specification
title=
1 230 x 230 mm HFM 1x50-72 3030370210 4052487228039
Download of data sheet and tender specification
title=
1 230 x 230 mm HFM 1x72-90 3030370211 4052487228046
Download of data sheet and tender specification
title=
1 320 x 320 mm HFM 1x100-110 1) 3030370212 4052487228053
Download of data sheet and tender specification
title=
Expand


1) e.g. suitable for ESG100 FUBO BHPXL10m
