Building entries

Single-line building package

for buildings with a basement

ESH PolySafe BHP

Add to wish listAdd to wish list
Single-line building package - for buildings with a basement
USP
  • one-stop all-round worry-free package
  • optical and tangible installation security due to integrated control opening

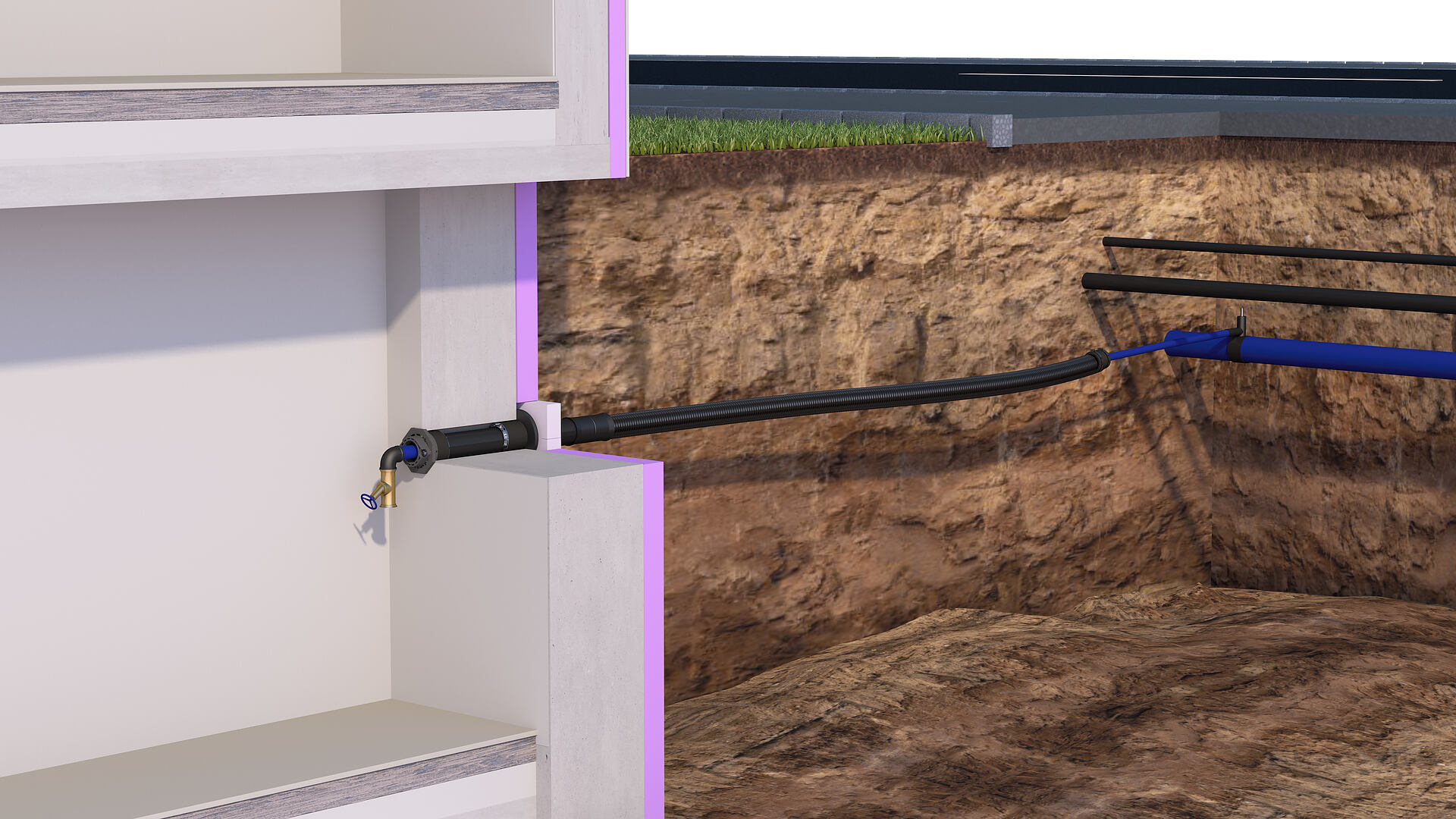

Building package in the form of a single-line building entry system suitable for gas, water or power supplies - can used in all common types of wall.
Single-line building package - for buildings with a basement

Facts

Advantages:

  • can be installed easily and quickly on-site
  • Continuous duct connection possible

Scope of delivery:

  • 1 piece of single-service building entry system ESH PolySafe GV1
  • 1 piece of outer sealing element ESH PolySafe M6.2
  • 1 piece of Insulation disk MSH PolySafe M3
  • 1 piece of sealing element for drinking water SDW 1x32/40/50
  • 1 piece of sealing element for electricity SDE 1x26-29/36-39/43-46/48-51
  • 1 piece of sleeve cap MS78U 1x24-52 for electricity or water
  • 1 piece of pipe connection/extension set 4-piece
  • 1 piece of GMT35 lubricant

Dimensions:

  • Compatible with core drill/wall sleeve ID: 99 - 103 mm
  • Sleeve pipe OD: 75 mm, 600 mm long
  • maximum wall thickness: 500 mm

Properties:

  • DVGW-certified

Application range:

  • Water exposure class DIN 18533: W1-E and W2.1-E
  • Waterproof concrete stress class 1 and 2

Tightness:

  • gastight and watertight to 1.0 bar
  • radon tight

Tests/Standards:

  • DVGW VP 601
Downloads

Installation instructions

Test reports

Data sheet & tender specification

For download of data sheet and tender specification please configurate the product in the section below and download via the symbol Download symbol

Variants

Article code Packing unit Article number GTIN
ESH PolySafe BHP 1 3030300035 4052487170857
Download of data sheet and tender specification
title=
ESH PolySafe BHP 10 3030300035 4052487223515
Download of data sheet and tender specification
