Double wall insert

adjustable length, for setting in concrete

HSI150 K2 Varia

Add to wish list

Double wall insert - adjustable length, for setting in concrete

stepless adjustment to the required wall thickness on site
in total, three spray applications of 3-ribbed seal are applied to create a pressure-tight seal with the concrete
quality mark on both sides: sealed ex works. Option to check for accidental or unauthorised opening of the closing cover

For the gastight and watertight connection on both sides of system seals for cables and cable ducts and maximum flexibility for subsequent use.

Facts

Advantages:

System seal can be connected on both sides (e.g. cable duct connection and cable seal)
Packages can be created with frame connection system on site
Can be used in all types of wall including element constructions

Scope of delivery:

2 pieces of pressure-tight closing covers
1 piece of hex key with integrated torque limitation

Dimensions:

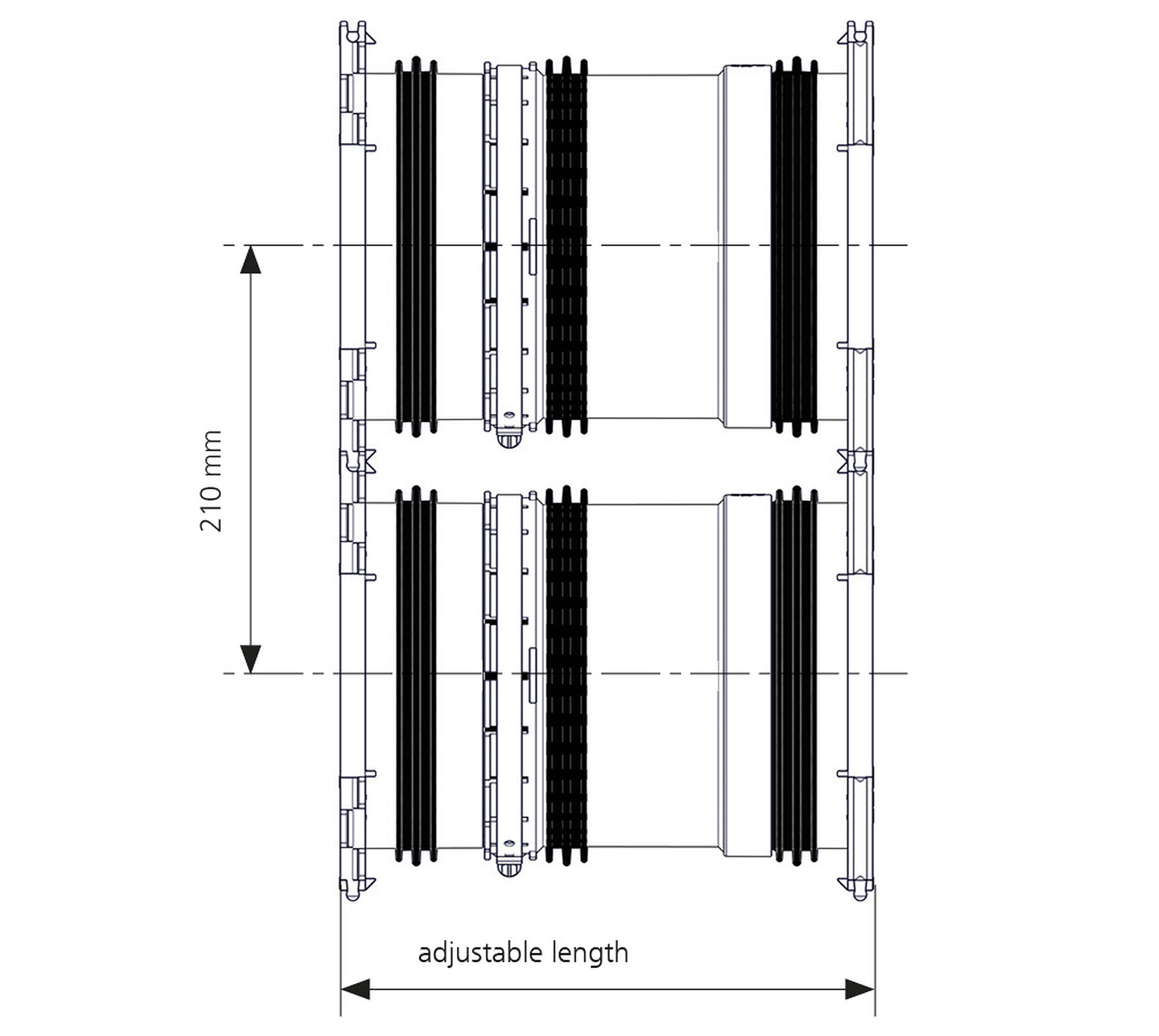

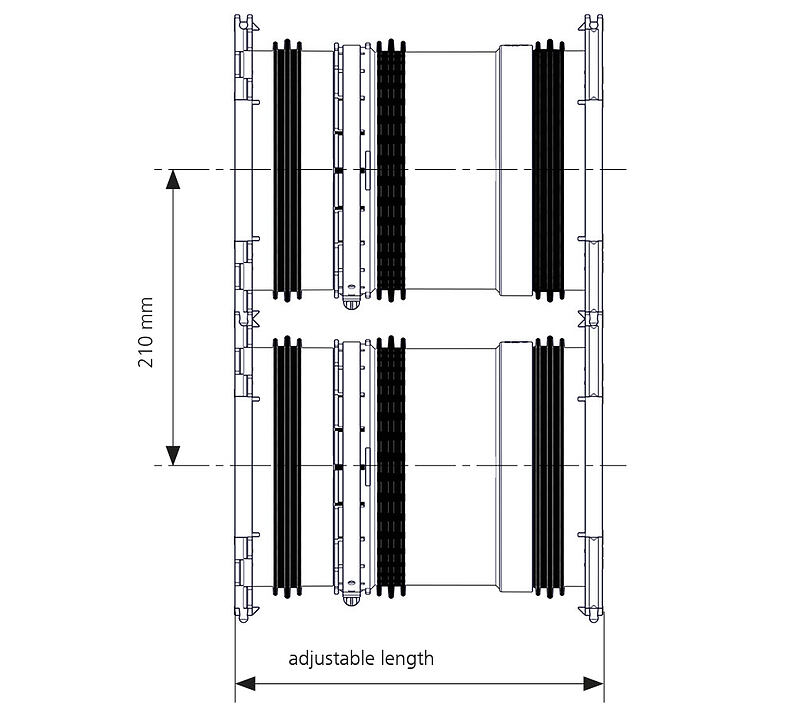

Frame dimensions: 220x 220 mm
Centre distance: 210 mm
Minimum wall thickness: 200 mm

Application range:

Waterproof concrete stress class 1 and 2

Material:

Wall insert: ABS with TPE 3-ribbed seal
Adapter pipe: PVC
Clamping strap: Steel St sn (W1)
Closing cover: ABS with TPE seal

Tightness:

gastight and watertight to 2.5 bar
radon tight

Downloads

Installation instructions

HSI150 K2 Varia (PDF, 5MB)

Test reports

HSI150 K2 Varia (PDF, 372KB)

Data sheet & tender specification

For download of data sheet and tender specification please configurate the product in the section below and download via the symbol Download symbol

Variants

Wall thickness (mm)	Article code	Packing unit	Article number	GTIN
200-260	HSI150 1x1 K2 Varia 200-260	1	3030300084	4052487135009	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
200-260	HSI150 1x1 K2 Varia 200-260	8	3030300084	4052487220064	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
260-365	HSI150 1x1 K2 Varia 260-365	1	3030300085	4052487134231	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
260-365	HSI150 1x1 K2 Varia 260-365	8	3030300085	4052487220071	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
365-470	HSI150 1x1 K2 Varia 365-470	1	3030300086	4052487140430	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
365-470	HSI150 1x1 K2 Varia 365-470	4	3030300086	4052487220088	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
470-575	HSI150 1x1 K2 Varia 470-575	1	3030300087	4052487140454	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
470-575	HSI150 1x1 K2 Varia 470-575	4	3030300087	4052487220095	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
