Cable entries Wall sleevesInserts and flanges / new construction

Cable screw connection

KV PG

Add to wish list

For introducing one or more cables/micropipes in a housing wall. The sealing of cables/micropipes is via a suitable HRD F b30 press seal, assignment options available upon request.

Facts

Advantages:

Fast and simple sealing of media pipe via cold or heat shrink method
High degree of on-site flexibility due to large shrinking range

Scope of delivery:

1 piece of counter screw
Sockets
1 piece of O-ring
1 piece of shrink sleeve (either heat shrink or cold shrink method)

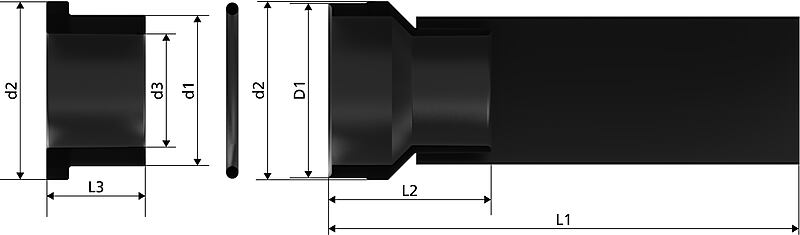

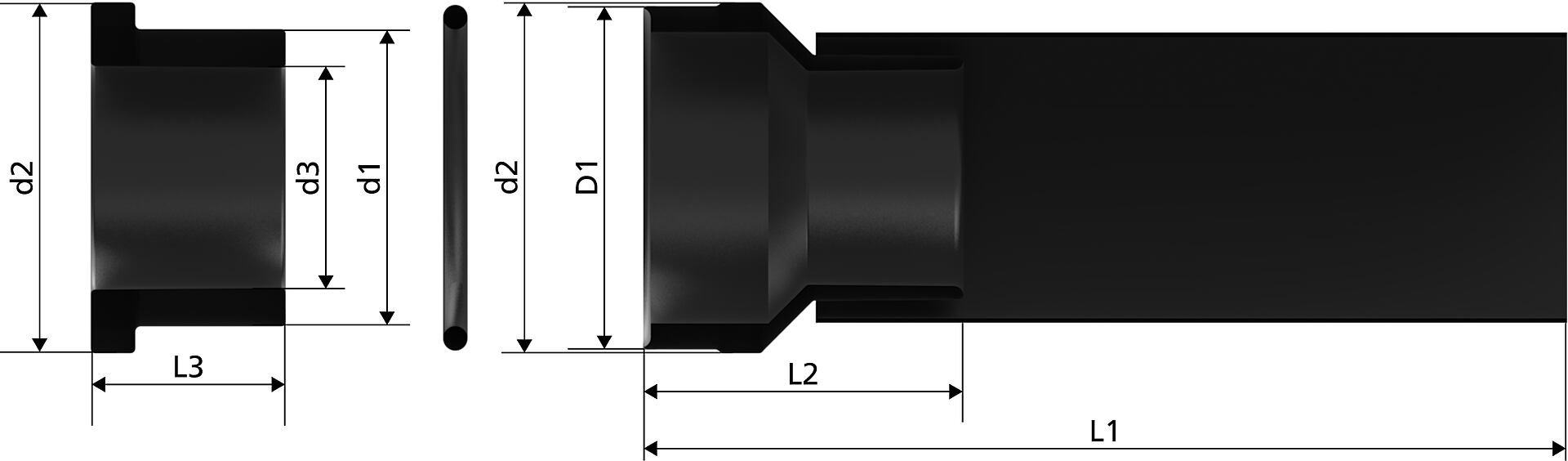

Dimensions:

For housing holes Øi: 60 mm (KV-PG 48) or 76 mm (KV-PG 68)

Material:

Counter screw and socket: polycarbonate
O-ring: NBR

Downloads

Installation instructions

KV PG (PDF, 881KB)

Data sheet & tender specification

For download of data sheet and tender specification please configurate the product in the section below and download via the symbol Download symbol

Variants

Housing bore hole ID (mm)	Area of application cable OD (mm)	Article code	Article number	GTIN
60	44,5-24	KV PG48 KS	334020090	4052487009553	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
75	68-38	KV PG68 KS ¹⁾	334010090	4052487009522	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:

¹⁾ Micropipes can be sealed with a press seal HRD68 F b30.

Housing bore hole ID (mm)	Area of application cable OD (mm)	Article code	Article number	GTIN
60	44,5-16	KV PG48 WS	334020000	4052487009546	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
75	68-22	KV PG68 WS ¹⁾	334010000	4052487009515	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
75	27-9	KV PG68 WS 4F	334010100	4052487009539	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
