Cable entries Wall sleevesInserts and flanges / new construction

Universal wall sleeve

for any type of wall

UFR

Add to wish list

Universal wall sleeve - for any type of wall

flange connection for the processing of plastic-modified bitumen thick coatings
tried and tested solution for use in fresh concrete composite systems

Enables sealing in all types of wall when combined with sealing flange and 3-bridge seals.

Facts

Advantages:

Lightweight
Simple installation in the formwork
Can be cut to length on site
Can be used in all types of wall including element constructions

Scope of delivery:

2 pieces of closing covers

Properties:

FHRK-certified
Break-resistant, inherently stable
Sealed ready for installation

Application range:

Water exposure class DIN 18533: W1-E and W2.1-E
Waterproof concrete stress class 1 and 2

Material:

Pipe: PVC-U
Integrated patch flange: ABS
3-ribbed seals: EPDM
Closing cover: PE

Tightness:

gastight and watertight

Downloads

Technical drawings

Installation instructions

UFR (PDF, 780KB)

Test reports

Data sheet & tender specification

For download of data sheet and tender specification please configurate the product in the section below and download via the symbol Download symbol

Variants

Wall sleeve ID (mm)	Wall sleeve OD (mm)	flange edge dimension (mm)	flange surface dimension (mm)	Lenght (mm)	Article code	Packing unit	Article number	GTIN
100	110	227	210	70	UFR100/70	1	2800210071	4052487190060	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
100	110	227	210	200	UFR100/200	1	3030300244	4052487216098	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
100	110	227	210	200	UFR100/200	5	3030300244	4052487221177	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
100	110	227	210	240	UFR100/240	1	3030300245	4052487216104	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
100	110	227	210	240	UFR100/240	5	3030300245	4052487221184	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
100	110	227	210	250	UFR100/250	1	3030300246	4052487216111	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
100	110	227	210	250	UFR100/250	5	3030300246	4052487221191	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
100	110	227	210	300	UFR100/300	1	3030300247	4052487216128	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
100	110	227	210	300	UFR100/300	5	3030300247	4052487221207	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
100	110	227	210	365	UFR100/365	1	3030300248	4052487216135	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
100	110	227	210	365	UFR100/365	5	3030300248	4052487221214	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
100	110	227	210	400	UFR100/400	1	3030300249	4052487216142	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
100	110	227	210	400	UFR100/400	5	3030300249	4052487221221	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
100	110	227	210	450	UFR100/450	1	3030322307	4052487228275	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
100	110	227	210	500	UFR100/500	1	3030300250	4052487216159	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
100	110	227	210	500	UFR100/500	5	3030300250	4052487221238	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
100	110	227	210	700	UFR100/700	1	2800210700	4052487187879	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:

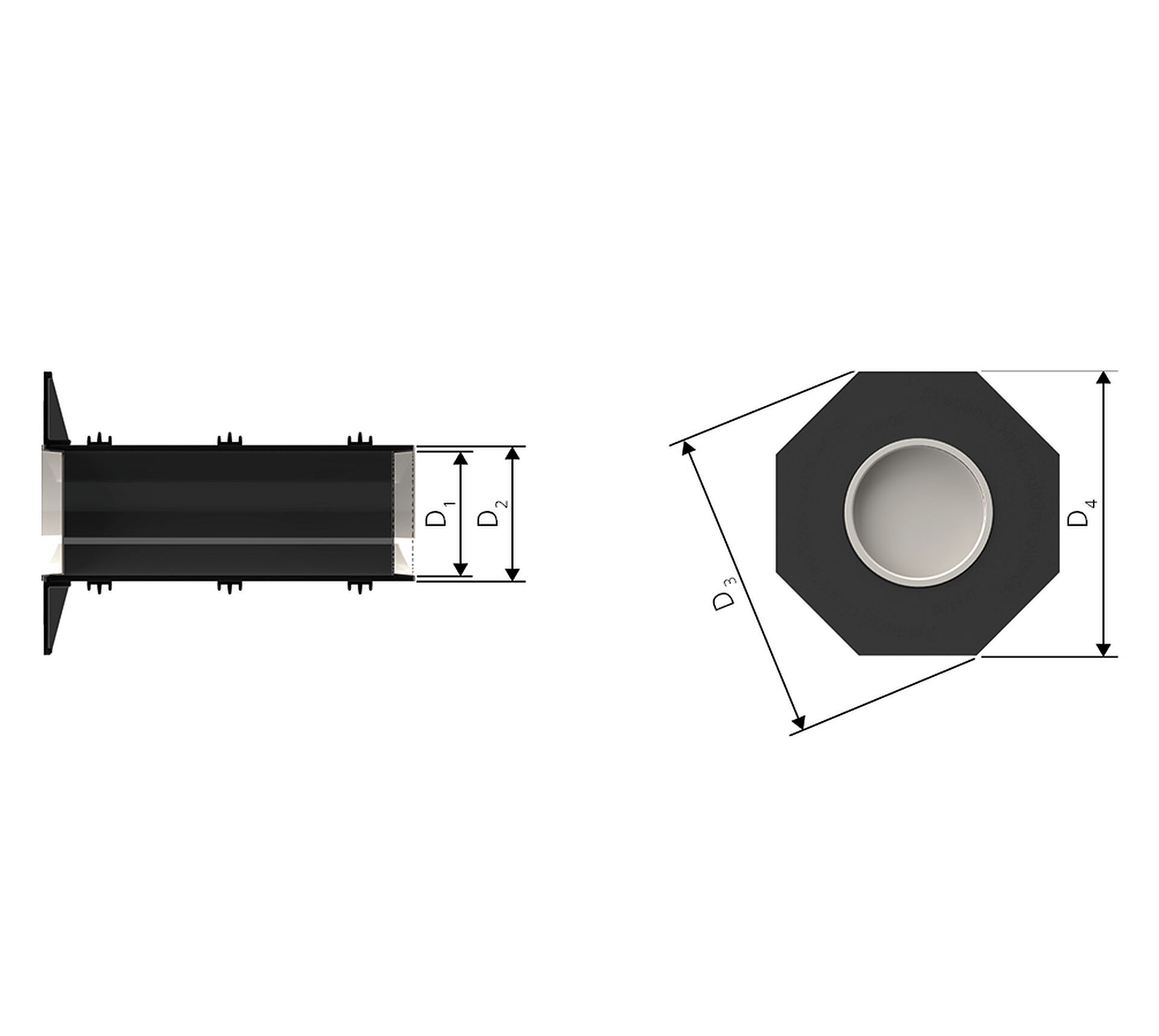

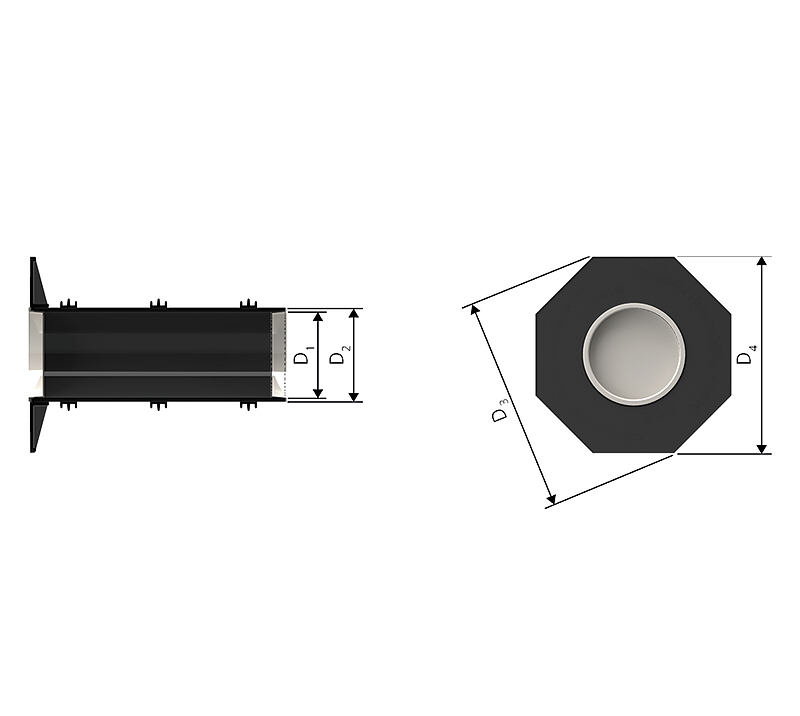

D1: wall sleeve Øi, D2: wall sleeve Øa, D3: flange edge dimension, D4: flange surface dimension

Wall sleeve ID (mm)	Wall sleeve OD (mm)	flange edge dimension (mm)	flange surface dimension (mm)	Lenght (mm)	Article code	Packing unit	Article number	GTIN
150	162	282	260	140	UFR150/140	1	3030369711	4052487228220	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
150	162	282	260	200	UFR150/200	1	3030300251	4052487216166	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
150	162	282	260	200	UFR150/200	5	3030300251	4052487221245	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
150	162	282	260	240	UFR150/240	1	3030300252	4052487216173	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
150	162	282	260	240	UFR150/240	5	3030300252	4052487221252	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
150	162	282	260	250	UFR150/250	1	3030300253	4052487216180	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
150	162	282	260	250	UFR150/250	5	3030300253	4052487221269	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
150	162	282	260	300	UFR150/300	1	3030300254	4052487216197	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
150	162	282	260	300	UFR150/300	5	3030300254	4052487221276	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
150	162	282	260	365	UFR150/365	1	3030300255	4052487216203	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
150	162	282	260	365	UFR150/365	5	3030300255	4052487221283	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
150	162	282	260	400	UFR150/400	1	3030300256	4052487216210	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
150	162	282	260	400	UFR150/400	5	3030300256	4052487221290	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
150	162	282	260	500	UFR150/500	1	3030300257	4052487216227	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
150	162	282	260	500	UFR150/500	5	3030300257	4052487221306	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
150	162	282	260	550	UFR150/550	1	3030321456	4052487228237	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
150	162	282	260	580	UFR150/580	1	3030327068	4052487228244	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
150	162	282	260	800	UFR150/800	1	3030327060	4052487228251	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
150	162	282	260	840	UFR150/840	1	3030338282	4052487228268	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:

D1: wall sleeve Øi, D2: wall sleeve Øa, D3: flange edge dimension, D4: flange surface dimension

Wall sleeve ID (mm)	Wall sleeve OD (mm)	flange edge dimension (mm)	flange surface dimension (mm)	Lenght (mm)	Article code	Packing unit	Article number	GTIN
200	214	336	311	70	UFR200/70	1	2800220071	4052487190077	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
200	214	336	311	120	UFR200/120	1	3030317797	4052487228282	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
200	214	336	311	200	UFR200/200	1	3030300258	4052487216234	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
200	214	336	311	200	UFR200/200	5	3030300258	4052487221313	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
200	214	336	311	240	UFR200/240	1	3030300259	4052487216241	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
200	214	336	311	240	UFR200/240	5	3030300259	4052487221320	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
200	214	336	311	250	UFR200/250	1	3030300260	4052487216258	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
200	214	336	311	250	UFR200/250	5	3030300260	4052487221337	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
200	214	336	311	300	UFR200/300	1	3030300261	4052487216265	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
200	214	336	311	300	UFR200/300	5	3030300261	4052487221535	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
200	214	336	311	360	UFR200/360	1	3030328574	4052487228299	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
200	214	336	311	365	UFR200/365	1	3030300262	4052487216272	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
200	214	336	311	365	UFR200/365	5	3030300262	4052487221344	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
200	214	336	311	400	UFR200/400	1	3030300263	4052487216289	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
200	214	336	311	400	UFR200/400	5	3030300263	4052487221351	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
200	214	336	311	500	UFR200/500	1	3030300264	4052487216296	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
200	214	336	311	500	UFR200/500	5	3030300264	4052487221368	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
200	214	336	311	520	UFR200/520	1	2800220520	4052487169158	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
200	214	336	311	580	UFR200/580	1	3030327069	4052487228305	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
200	214	336	311	650	UFR200/650	1	3030355328	4052487226660	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
200	214	336	311	800	UFR200/800	1	3030327070	4052487228312	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:

D1: wall sleeve Øi, D2: wall sleeve Øa, D3: flange edge dimension, D4: flange surface dimension

Wall sleeve ID (mm)	Wall sleeve OD (mm)	flange edge dimension (mm)	flange surface dimension (mm)	Lenght (mm)	Article code	Packing unit	Article number	GTIN
250	264	416	384	70	UFR250/70	1	2800250070	4052487155533	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
250	264	416	384	200	UFR250/200	1	2800250200	4052487155526	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
250	264	416	384	240	UFR250/240	1	2800250240	4052487155540	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
250	264	416	384	250	UFR250/250	1	2800250250	4052487155557	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
250	264	416	384	300	UFR250/300	1	2800250300	4052487155564	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
250	264	416	384	350	UFR250/350	1	2800250350	4052487164436	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
250	264	416	384	365	UFR250/365	1	2800250365	4052487155571	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
250	264	416	384	400	UFR250/400	1	2800250400	4052487155588	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
250	264	416	384	425	UFR250/425	1	2800250425	4052487155595	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
250	264	416	384	450	UFR250/450	1	2800250450	4052487155601	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
250	264	416	384	490	UFR250/490	1	2800250490	4052487155618	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
250	264	416	384	500	UFR250/500	1	2800250500	4052487155625	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
250	264	416	384	600	UFR250/600	1	2800250600	4052487155632	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
250	264	416	384	650	UFR250/650	1	2800250650	4052487155649	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
250	264	416	384	800	UFR250/800	1	2800250800	4052487155656	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
250	264	416	384	1000	UFR250/1000	1	2800251000	4052487155663	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:

D1: wall sleeve Øi, D2: wall sleeve Øa, D3: flange edge dimension, D4: flange surface dimension

Wall sleeve ID (mm)	Wall sleeve OD (mm)	flange edge dimension (mm)	flange surface dimension (mm)	Lenght (mm)	Article code	Packing unit	Article number	GTIN
300	316	472	436	70	UFR300/70	1	2800030070	4052487154024	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
300	316	472	436	200	UFR300/200	1	2800030200	4052487154031	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
300	316	472	436	240	UFR300/240	1	2800030240	4052487154048	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
300	316	472	436	250	UFR300/250	1	2800030250	4052487154055	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
300	316	472	436	300	UFR300/300	1	2800030300	4052487154062	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
300	316	472	436	365	UFR300/365	1	2800030365	4052487154079	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
300	316	472	436	400	UFR300/400	1	2800030400	4052487154086	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
300	316	472	436	425	UFR300/425	1	2800030425	4052487154093	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
300	316	472	436	450	UFR300/450	1	2800030450	4052487154109	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
300	316	472	436	490	UFR300/490	1	2800030490	4052487154116	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
300	316	472	436	500	UFR300/500	1	2800030500	4052487154123	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
300	316	472	436	600	UFR300/600	1	2800030600	4052487154130	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
300	316	472	436	650	UFR300/650	1	2800030650	4052487154147	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
300	316	472	436	800	UFR300/800	1	2800030800	4052487154161	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
300	316	472	436	1000	UFR300/1000	1	2800031000	4052487154178	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
